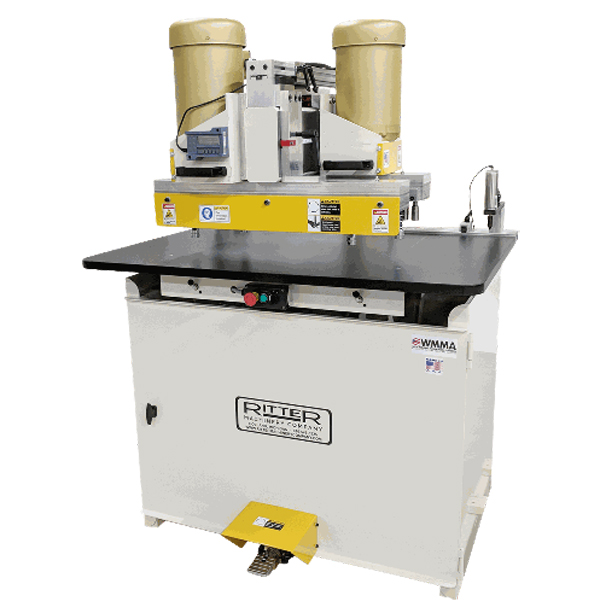

The Ritter R46 is part of Ritter's line of frameless cabinetry system drills. The R46 is ideal for cabinet and closet system panels requiring more than two rows of system holes for hardware functions.

The R46 drills two rows of shelf pin holes simultaneously. The fixed-position top drilling heads provide rigid panel control for precise hardware system hole location.

Single point panel referencing fence accurately locates all hardware system holes from the fence using fence-mounted stops and indexing pins. Linear bearing drill row adjustment on the precision ground beam provides positive drill row positioning. Quick set drill head index stops allow for rapid hole row location from the single-point fence. Back fence head nesting allows for third-row applications.

Standard features:

• (2) 23-Spindle Gear Driven Drill Head on 32mm Centers
• (24) Right Hand, (22) Left Hand
• 4"-24" Centers Between Rows
• Digital Readout Front Head Position Display
• Precision Linear Head Ways
• (4) Quick Set Drill Head Position Stops
• Rear Drill Row Nesting
• 48" Back Fence with (4) Adjustable Material Stops
• Right and Left Hand Work Stations
• (2) Air Index Pins
• (2) Spring Operated Material Clamps
• (2) Position Drill Depth Stop Turret
• Pneumatic Foot Actuated Boring Cycle
• Tooling Not Included

Technical Data and Specifications:

• Drive Motor: 3 HP
• Spindle Centers: 32mm
• Collet Size: 10mm
• Throat Capacity: 24"
• Maximum Material Thickness: 1.25"
• Electrical: 230V, 3Ø, 60Hz, 20A or 460V, 3Ø, 60Hz, 10A
• Air: 2 CFM at 80 – 100 PSI
• Work height: 39″
• Footprint: 48″ x 43″
• Table Area: 30″ x 48″

Additional options:

• H695 - 5mm LH Brad Point Bit 10mm Shank 57mm OAL
• H694 - 5mm LH Brad Point Bit 10mm Shank 57mm OAL
• Digital rear head location display
• R23 - Single Row System Drill
